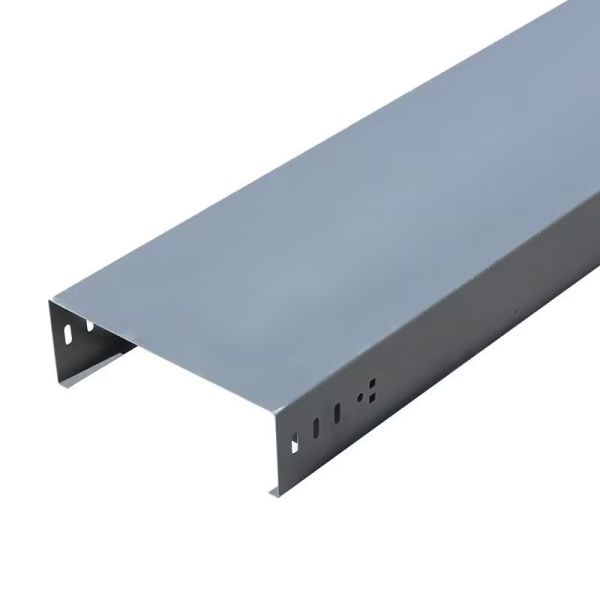

150mm Heavy Duty Cable Tray
The Heavy Duty Cable Tray is a robust structural system designed to support and manage large volumes of electrical cables, power distribution lines, and instrumentation cables in industrial and commercial settings. It is engineered to handle higher load capacities, greater spans, and harsher environmental conditions compared to medium or light-duty trays.
150mm Heavy Duty Cable Tray Characteristics & Design Features
High Load Capacity:
The primary defining feature. It can support heavy cables (e.g., large power feeders, bundled control cables) over long unsupported spans.
Material & Construction:
Materials: Made from pre-galvanized steel, hot-dip galvanized steel (after fabrication), stainless steel (304/316 for corrosive environments), or aluminum (for lightweight corrosion resistance).
Construction: Features thicker gauge metal, reinforced side rails (often with a return flange for strength), and heavier cross-bracing or solid-bottom rungs.
Durability & Protection:
Corrosion Resistance: Heavy-duty galvanizing (zinc coating) is standard. Paint or epoxy coatings can be added for additional chemical resistance or color coding.
Fire Resistance: Can be manufactured from materials with fire-retardant properties or designed with fire barriers.
Ventilation & Heat Dissipation:
Most are of the ladder-type or ventilated trough design, allowing for excellent air circulation around cables, which is crucial for preventing heat buildup in high-current applications.
Safety & Accessibility:
Provides a safe, elevated route for cables, protecting them from physical damage, water, and debris. Cables are easily accessible for addition, removal, or inspection.
150mm Heavy Duty Cable Tray SPECS
| Width |
Height |
Length |
Material |
| 100mm |
150mm |
2m/3m |
stainless steel |
| 150mm |
150mm |
2m/3m |
stainless steel |
| 200,300,400,500,600,800mm |
150mm |
2m/3m |
stainless steel |
| 250,300,400,500,600,800mm |
150mm |
2m/3m |
stainless steel |
| 400,500,600,800mm |
150mm |
2m/3m |
stainless steel |
150mm Heavy Duty Cable Tray Advantages
- Cost-Effective Installation: Faster and less labor-intensive than pulling cables through multiple conduits.
- Superior Flexibility: Cables can be easily added, replaced, or rerouted as system needs change.
- Excellent Heat Dissipation: Open design prevents overheating, allowing for better ampacity (current-carrying capacity) of cables.
- Organization & Safety: Clearly organizes cables, simplifies identification, and reduces trip hazards.
- Strength & Longevity: Designed for a long service life in demanding conditions.
150mm Heavy Duty Cable Tray Applications
Heavy Duty Cable Trays are essential in industries where reliability, capacity, and durability are critical:
- Power Generation Plants: (Thermal, Nuclear, Hydro, Renewable) For routing massive power feeder cables and control circuits.
- Oil & Gas and Petrochemical Plants: In refineries, offshore platforms, and pipelines, handling harsh, corrosive environments.
- Steel & Metal Plants: Withstanding high ambient temperatures and mechanical stress.
- Shipbuilding & Maritime: Onboard vessels and in dockyards, using corrosion-resistant materials.
- Large Data Centers: Managing extensive bundles of high-voltage power cables and backbone data cables.
- Airports & Transportation Hubs: For complex power distribution and control systems.
- Large Industrial Complexes and Manufacturing Facilities.
FAQ
1. Are you a manufacturer?
Yes, we have specialized in this field for over 30 years.
2. Could you provide sample?
Yes, we can provide sample with our catalogue. (But the courier charge will on your side.
3.Which kind of Trading Terms you can accept?
Payment: T/T,L/C,MoneyGram,CreditCard, PayPal, Western Union.
4.What 's your shipping term ?
FOB,CNF,CIF,DDU,DDP.
5. How is your delivery time?
We always preparing enough stock material for your urgent requirement. The fastest delivery time only 10 days. After order, we will send exact delivery time and producing schedule.
